FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit

Trung Quốc Shenzhen Unifiber Technology Co.,Ltd Chứng chỉ
Trung Quốc Shenzhen Unifiber Technology Co.,Ltd Chứng chỉ
Tôi trò chuyện trực tuyến bây giờ

FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit

FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit
FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit

Hình ảnh lớn :  FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: Unifiber or OEM
Chứng nhận: ROHS
Số mô hình: Cáp thả có thể đẩy MTC/SC
Thanh toán:
Số lượng đặt hàng tối thiểu: 10
Giá bán: Có thể đàm phán
chi tiết đóng gói: thùng carton
Thời gian giao hàng: 5 ~ 8 ngày
Điều khoản thanh toán: L/C, T/T
Khả năng cung cấp: 1000pcs/ngày
Chi tiết sản phẩm
Đầu nối: MTC/SC APC Kích thước cáp: Cáp thả FTTH 2 * 3 mm, cáp tròn 3.0mm
Loại sợi: G657A2 Tàu cáp: LSZH đen
Sử dụng cho: Xuyên tường/ống dẫn
Làm nổi bật:

FTTH pre-connectorized drop cable

,

SC-SC APC fiber patch cord

,

push-pull conduit fiber optic cable

FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit

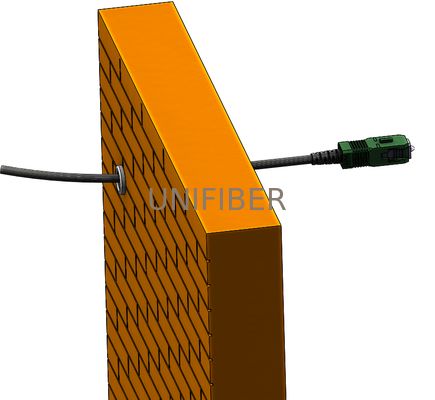

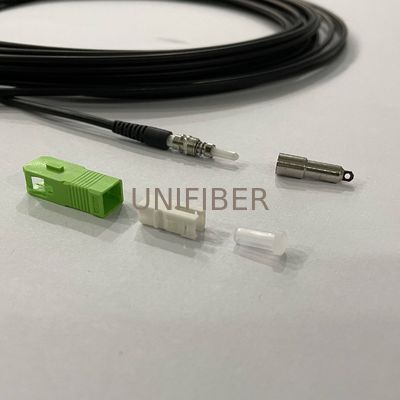

Through wall/conduit SCII type connector is a new type of connector developed for easy FTTH/conduit installation. The end face of the pin mostly adopts PC or APC type grinding method, and the fastening method uses the plug-in latch type with rotation. This connector is made of alloy material, which provides easy plugging/unplugging, small insertion loss fluctuation, high compressive strength, high installation density, high temperature resistance, and oxidation resistance.
Key Features
  • Metal protected mounting head, compatible with 2.8mm round cable
  • Designed for small pipelines or small wall holes
  • Available in both singlemode and multimode fiber with UPC and APC polishing

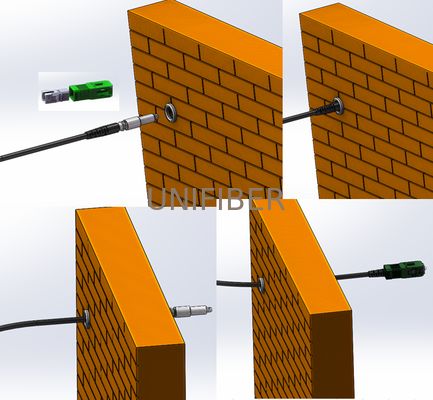

  • Fast installation requiring no special tools
  • Multiple installation methods available
Applications
  • Telecommunication systems
  • FTTR (Fiber to the Room)
  • CATV networks
  • LAN & WAN infrastructure
  • Network broadband
  • Building and home cable installation
Specifications
Items Singlemode Multimode
PC | UPC | APC 62.5/125 50/125 50/125 10G
Insertion Loss <0.2dB <0.3dB
Return Loss >45dB | >50dB | >60dB >35dB
Durability <0.1dB typical change, 500 matings
Ferrule Concentricity <1um & <0.5 um <4um
Ferrule inner diameter tolerance 125.0+1/-0um & 125.5+l/-0um 126+3/-0um & 127+3/-0um
Operating Temperature -40 to +75°C
Housing Color Blue/Green/Beige/Aqua/Pink
Boot color Black, White, Red, Green
Cable 2*3mm FTTH drop cable, 3.0mm Round cable
FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit 0
