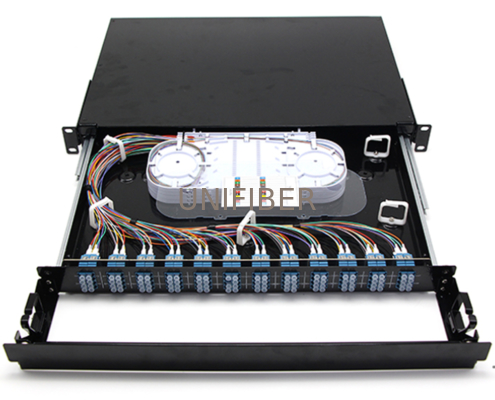

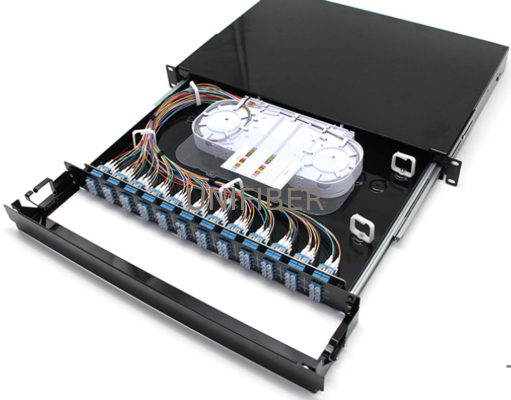

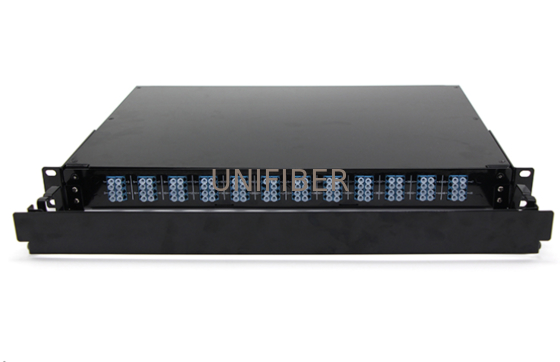

Fiber Optic High Density Patch Panel 19" Rack Mount 1U 96F LC Quad Adapter

Hình ảnh lớn : Fiber Optic High Density Patch Panel 19" Rack Mount 1U 96F LC Quad Adapter

Thông tin chi tiết sản phẩm:

Place of Origin:	CHINA
Hàng hiệu:	Unifiber or OEM
Chứng nhận:	ROHS
Model Number:	1U 96F Rack Mount Patch Panel

Thanh toán:

Minimum Order Quantity:	10
Giá bán:	Có thể đàm phán
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	100pcs/day

Tiếp xúc

Chi tiết sản phẩm

Product:	1U 96 Port Rack Mount Fiber Patch Panel	No Of Ports:	96F
Adapter:	Quad LC	Material:	Cold rolled steel
Function:	Fiber Splicing&patching	Installation:	Standard EIA 19″ Rack Mount

Unifiber provides 19” Rack-mountable High Density Fiber Optic Patch Panel for splicing and/or termination of optical fibers in an indoor environment. Also, loaded type available with Multimode or Single-mode pigtails, splice accessories and adapters,this is a compact Optical Distribution Frame which combines the splicing and patching segment in the same 1HU unit 19” Sub-Rack.The high density of 96ports (LC) makes the this HD fiber patch panel is the ideal distribution component in mixed 19” rack configurations,

Features

19’ Rack Mount Compact design

96Cores High port density

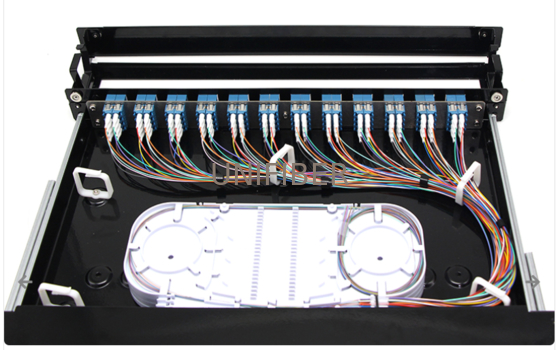

Combined splice and patch area

Integrated patch cord guiding system

The design of double-layer adapter panel strips is convenient and quick

The hidden wiring design makes it aesthetically pleasing and tidy

The design of deepening the frame body provides a larger wiring capacity

Application

ODN system

Data center

ISP local deployment

Bank, Hospital, School LAN deployment

Specification

Part No .	HD PATCH PANEL 96F	Product Name	19‘ 1RU Slide Rail Rack mount patch panel V3
Material	CRS Cold rolled steel	Installation	Standard EIA 19″ Rack
Connection Port	96Ports LC	Dimensions (HxWxD)	4822401.144.3mm
Adapter type	LC Quad type flangeless	Fiber Mode	SM G657A1 or G657A2
Function	Fiber Splicing&patching	Pigtail Spec	LCUPC 1.5m 0.9mm
